CO2 Cascade Refrigeration Cycle. Results show that a carbon dioxide-ammonia cascade refrigeration system is an interesting alternative to R404A two-stage refrigeration system.
The upper cascade primary system is a medium-temperature refrigeration system.

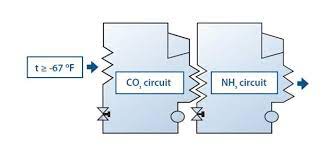

Nh3 co2 cascade refrigeration system. The cascade refrigeration system is constituted by two single stage systems connected by a heat exchanger cascade heat exchanger. The low temperature system with CO 2 as refrigerant is used for cooling. The high temperature system with NH 3 as refrigerant is used to condensate the CO 2 of the low temperature system.
A CO2NH3 cascade system uses less energy per ton of refrigeration when compared to other refrigeration systems at full load but the difference can be even better at part load especially when operating at evaporating temperatures of -35 o F to -60 o F. An NH3 CO 2 cascade refrigeration system is modelled simulated under Engineering Equation Solver EES and the results are discussed. It is noted that the use of an internal heat exchanger in the R717R744 cascade system reduces performance by 47 whereas subcooling in both circuits increases the performance of the cascade systems by 1650.
Exercise analysis of the cascade refrigeration. Thus York Group has readily available CO2 compressors. This article discusses the major technical and financial advantages of the CO2NH3 cascade system and its limitation based on two case studies.

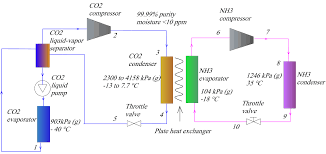

These studies suggest potential savings of life-cycle costs compared with the equivalent NH3 system. The sketch of the NH 3 CO 2 cascade refrigeration system that was built in the present study is shown in Fig. This test rig is consisted mainly of two parts one was the high temperature cycle with NH 3 as the working fluid and the other was the low temperature cycle with CO 2.
Of a cold storage facility this modular refrigeration unit combines CO2 and NH3 compression technologies and electronic controls in a cascade system that contains two independent CO2 and NH3 circuits with separate condensers and evaporators including a shared cascade heat exchanger. The NH portion of the cascade system provides the high. The cascade refrigeration system is made of two single stage systems connected by a heat exchanger cascade heat exchanger.
CO 2 is used as refrigerant in the low temperature system and NH 3 is the refrigerant for the high temperature system. The CO 2 NH 3 cascade refrigeration cycle uses two natural refrigerants NH 3 R717 in the high temperature circuit and CO 2 in the low temperature circuit and is a well-known system in refrigeration industry. Research on CO 2 NH 3 cascade refrigeration has been reported by.
In addition values for R744-R717 cascade refrigeration system are compared with the values obtained for a partial injection two-stage refrigeration system using the synthetic refrigerant R404A a nearly azeotropic blend specially used for commercial refrigeration. Results show that a carbon dioxide-ammonia cascade refrigeration system is an interesting alternative to R404A two-stage refrigeration system. The upper cascade primary system is a medium-temperature refrigeration system.
CO 2 is considered a natural refrigerant with very low global warming potential GWP1. CO 2 is an inexpensive refrigerant compared with HFC and is widely available. An excess of 70 percent reduction in HFC refrigerant charge can be achieved.
Examining NH3CO2 Cascade Systems. Order Reprints No Comments ALBUQUERQUE NM. CO2 is no longer the refrigerant of the future.
It is the refrigerant of the present With those words Per Nielsen of York Refrigeration-Marine Controls notched up the role of carbon dioxide CO2 as a refrigerant at the International Institute of Ammonia Refrigerations. Still cracking heads on the vessels design approval stage. Inconsistent information on documents and drawing plans from manufacturer seriously test my patie.
CO2 Cascade Refrigeration Cycle. If playback doesnt begin shortly try restarting your device. In this paper a cascade refrigeration system with CO2 and NH3 as working fluids in the low and high temperature stages respectively has been analysed.
For refrigerated and frozen food processors choosing between an ammonia or an ammoniaCO2 cascade system can be one of the most important variables. One of the primary drivers when evaluating ammonia or ammoniaCO2 cascade systems is understanding that ammonia contamination in processing and production rooms can be a huge potential liability to facilities and. 2003 IIAR ammonia refrigeration conference Albuquerque New Mexico Controlling the system Fast responding control system necessary A defrost introduce rapid changes in both the CO2 NH3 system Defrost compressor must be kept within its operating limits Low capacity situation demands fine regulation dry ice.
Up until the 1940s a large number of installed refrigeration systems used CO 2 as the refrigerant. However users had trouble with these systems because. The operating pressure for CO 2 is very high The triple point for CO 2 70 psig 48 barg and 70F 57C is above atmospheric pressure.
A CO2 Cascade Refrigeration System operating in a typical cold storage building when compared with a typical two-stage ammonia refrigeration system uses significantly less power and is therefore significantly more efficient. The CO2 Cascade System provides cooling and freezing storage at temperatures between -10F and 35F and blast freezing at -45F to -48F air temperatures. One other unique benefit in the CO 2 cascade system is that with CO 2 high temperatures such as 32 docks can operate using recirculated CO 2 that returns to the intermediate condenser heat exchanger and never sees a compressor suction directly.
I call it the compressorless cycle. There are several occasions where this also can work to your advantage since the air units can be placed more.
